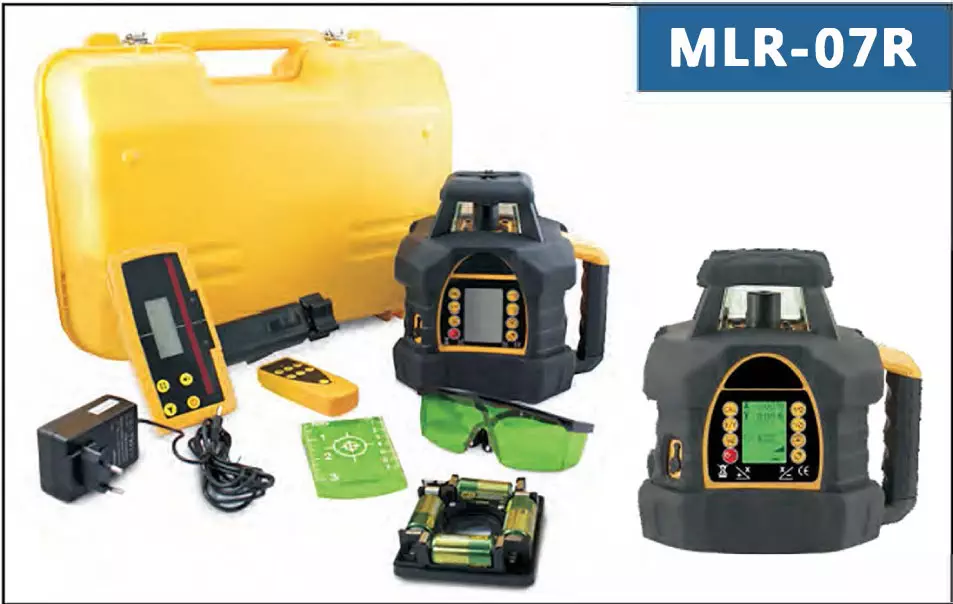

M LR-07R/07RH/07G Rotary Laser


Model MLR-07R MLR-07RH MLR-07G
Light source Red beam Green beam
Accuracy horizontal ±20″(±3mm/30m)
Accuracy vertical ±20″(±3mm/30m)
Slope range ±10.0% (Digital)
Automatic self-leveling range ±5°
Laser source 635nmm laser Diode 532nm laser Diode
Classification II (<1mw)
Operational range 500m dia . (with detector)
Rotational head speed 60,120,300,600,R.P.M
Approximate scan angles 10°, 45 °, 90°, 180°
IR Remote control Available remote distance:20m
Operation temperature – 10°C ~ 50°C 0°C ~ 50°C
Power supply DC4.8-6V(4Section of Nl-MH batteries or 4 section of Ni-MH rechargeable batteries )
Continuous working time 20hours 7 hours
Waterproof and dust proof Ip64
Dimension 180 ( L) x 180 (W) x 220 ( H) mm
Weight 2.8kg(w/batteries)
