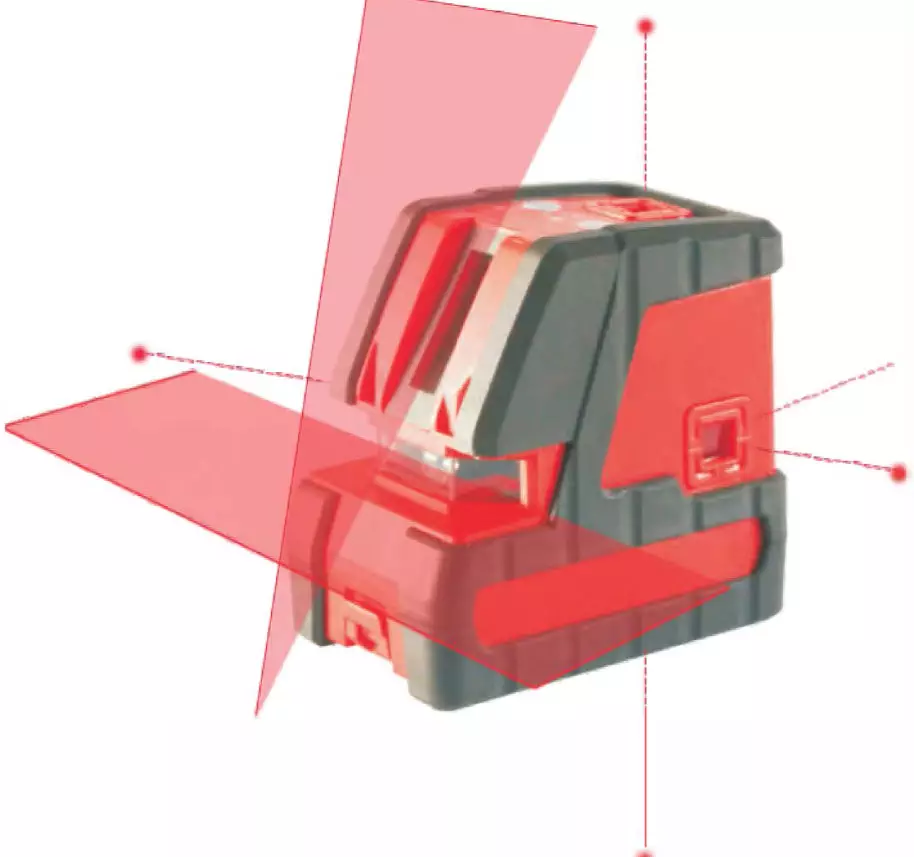

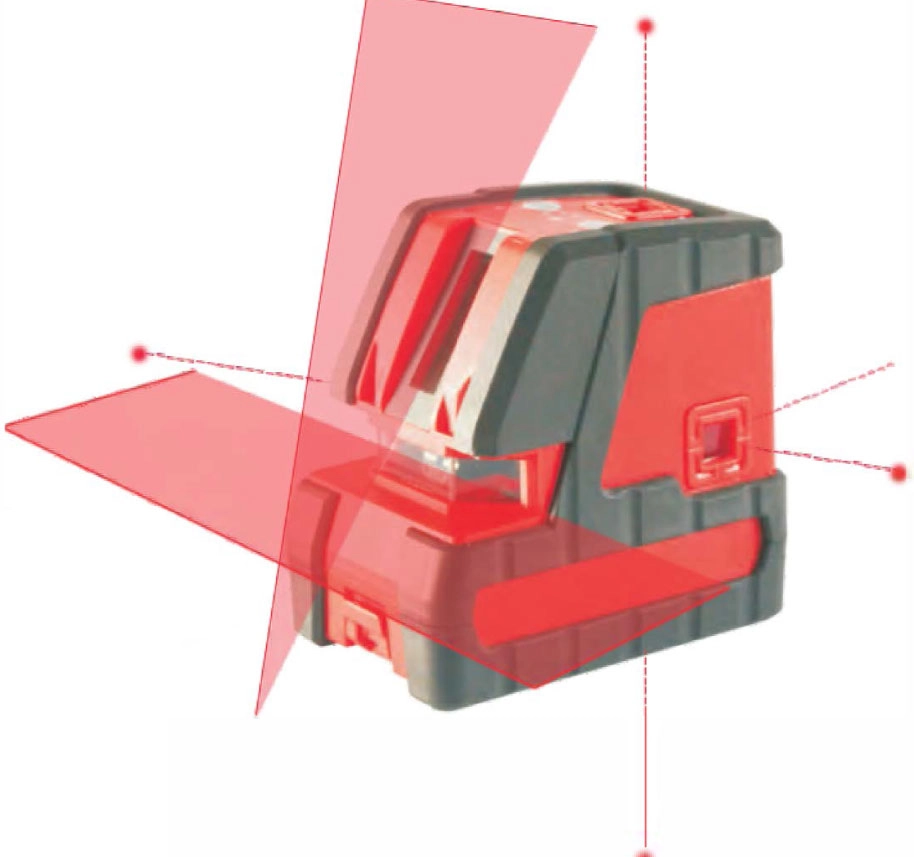

ML-502P Dot & Line Laser


Model ML-CL02
Light source Red Green
Output power 20mw 10mw
Laser line 1V: 110° /1 H: 180° / 5 dots (Cross over the ceiling)
Laser diodes 635nm, < 1 mw/Class 2 520nm, < 1 mw/Class 2
Laser accuracy 5m/±1mm
Dot accurracy 5m/2mm
Self-leveling range ±4°(±0.5°)
Power supply Alkaline battery AAx4
Operating time 8h 6h
Protection class IP54
Operation temperature -10°~50°C
Screw adapter 1/4″

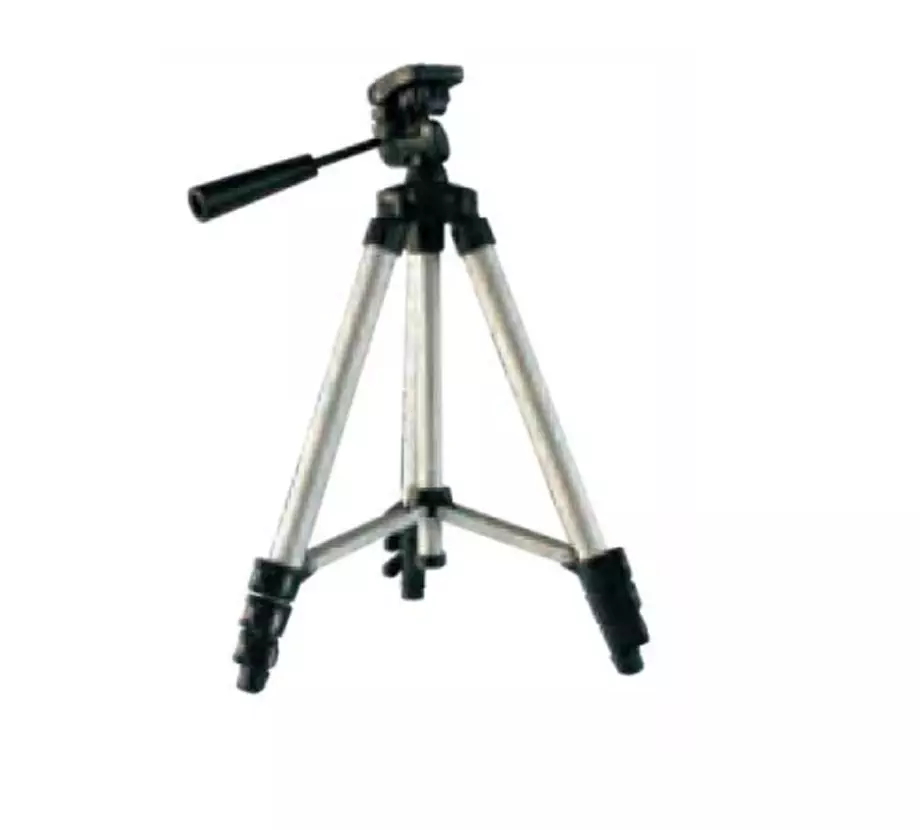

Option ATP1 OC tripod;WB-04 wall bracket
