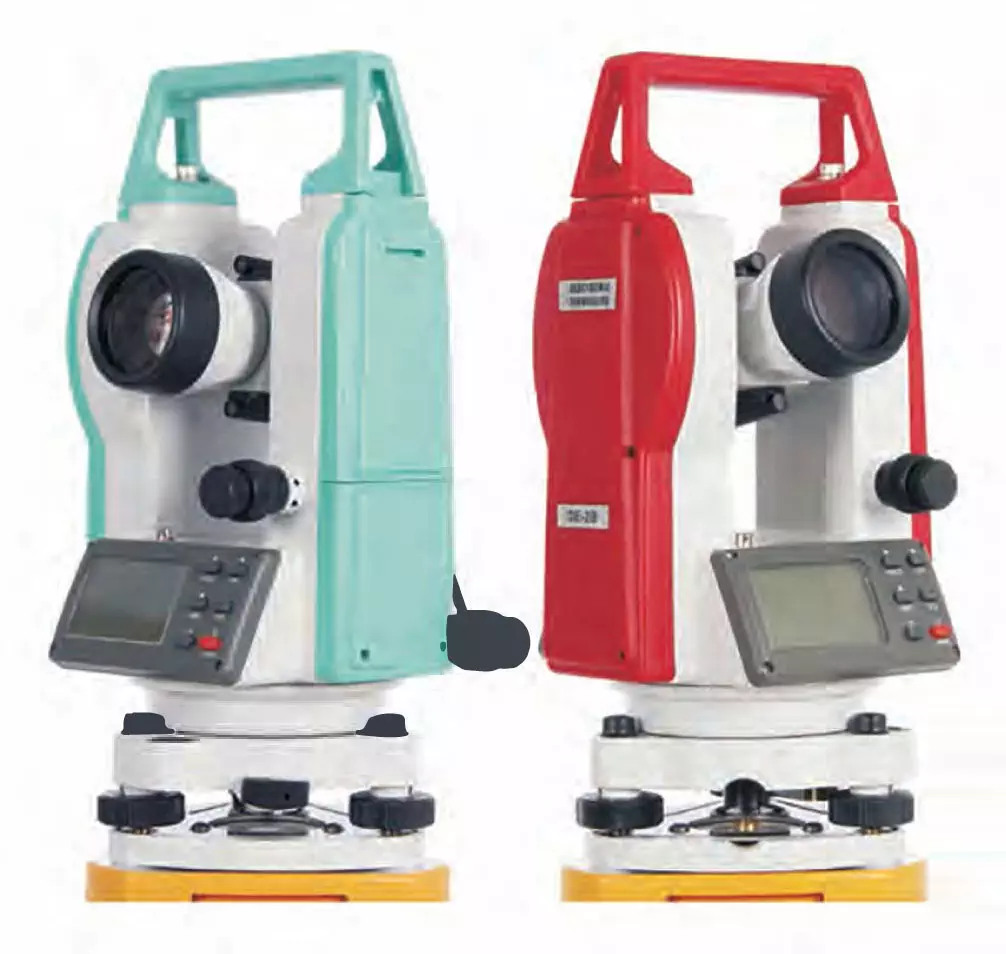

Electronic Theodolite DE-28


  • Plummet could be laser or optical
  • Power: rechargeable Li-ion battery I Ni-MH battery
  • Standard outfits comes with a dry battery case
  • Rechargeable battery working time 24hours
  • Color option: Green, Red, Orange, Yellow
  • Net weight 4.8kg
SKU: 200001 Category:


Model DE-28
Telescope Imaging Erect image
Magnification 30X
Objective Aperture 45mm (1.7in)
Resolution 3″
Field of View 1°30′
Minimum Focusing Distance 1.35m (4.43ft)
Stadia multiplication factor/ Constant 100/0
Length 155mm
Angle Measurement Measurement Type Absolute Code
Display Dual backlit LED
Display Resolution 1″/S”/10″
Precision 2″ or S”
Circle Diameter 79mm
Display units 360°,400gon,6400mil
Vertical Compensator Working Range ±3′
Optical Plummet(Optional) Magnification 3x
Field of View
Focusing Range O.5m-∝
Laser Pointer and Laser Plummet Laser Range 180m/250m
Wave Length Red 635nm/Green 520nm
Power SmW
Laser Spot Diameter 2mm/100m
Bubble Level Cylinder Bubble 30″/2mm
Circular Bubble 8’/2mm
Environmental conditions Operating Temperature -20°C to 50°C
Power Rechargeable Battery Li-ion 7.4V 1650mAH
Weight Weight including battery and tribrach 4.8kg
