Description

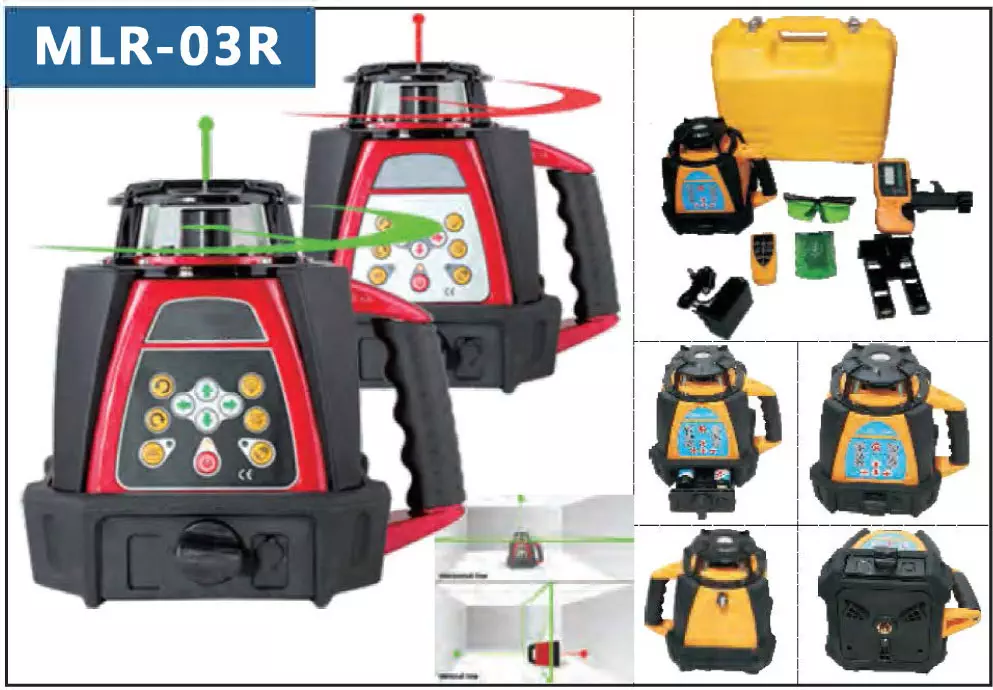

| Model | MLR-03R | MLR-03RH | MLR-03G |
|---|---|---|---|
| Light source | Red beam | Green beam | |
| Wave length | Laser diode, wavelength 635nm | Laser diode, wavelength 532nm | |
| Anti-water class | IP-54 | ||
| Accuracy horizontal | ±20″(±3mm/30m) | ||
| Accuracy vertical | ±20″(±3mm/30m) | ||
| Spinning speed | 0, 60, 120, 300, 600 r.p.m | ||
| Directional-scanning | 0°, 10°, 45°, 90°, 180° | ||
| Setting slope | ± 5°(Bi-directional) | ||
| Measuring range | Dia. 500m(Using the laser detector) | ||
| Remote controlling distance | Approximately 20m | ||
| Power supply | DC4.8-6V(4Section of NI-MH batteries or 4 section of Ni-MH rechargeable batteries ) | ||
| Mounting thread | 5/8″ | ||
| Working temperature | -l0°C~+45°C (14°F~113°F) | ||
| Dimension | 160 ( L) x 160 (W) x 185 ( H) mm | ||
| Weight | 2.6kg | ||
