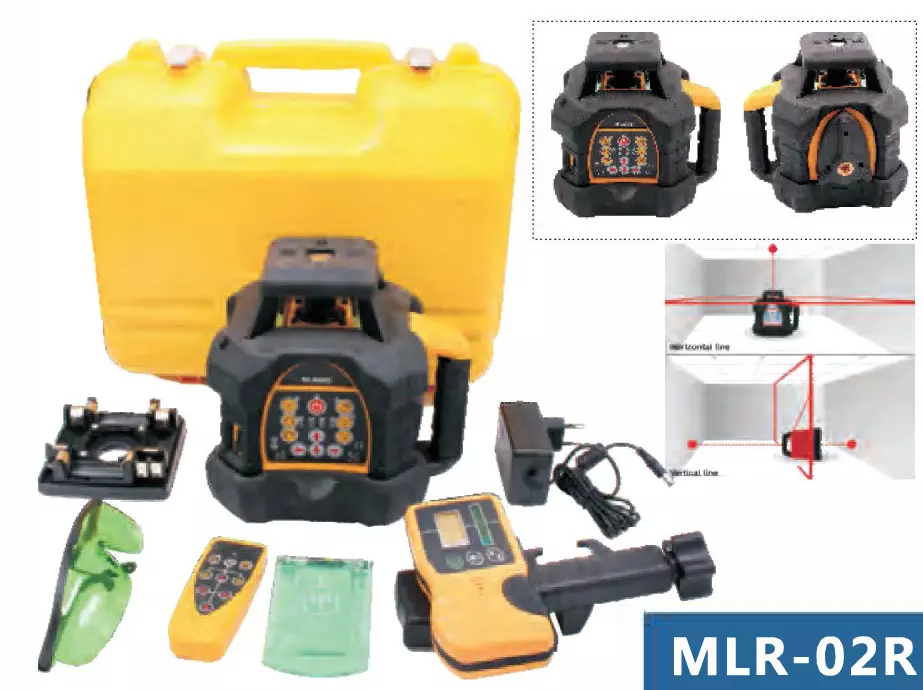

MLR-02R/02RH/02G Rotary Laser


Model MLR-02R MLR-02RH MLR-02G
Light source Red beam Red beam -high power Green beam
Wave length Laser diode, wavelength 635nm Laser diode, wavelength 532nm
Anti-water class IP-64
Leveling accuracy ±20″(±3mm/30m)
Plummet accuracy ±1mm/1.5m
Slope range ± 10.0% (1 in 10)
Spinning speed 0, 60, 120, 300, 600 r.p.m
Directional-scanning 0°, 10°, 45°, 90°, 180°
Setting slope ±5°(dual axis)
Measuring range Dia. 600m(Using the laser detector)
Remote controlling distance Approximately 20m
Power supply DC4.8-6V(4Section of NI-MH batteries or 4 section of Ni-MH rechargeable batteries )
Continuous working time 20hours 7hours
Mounting thread 5/8″
Working temperature -l0°C~+45°C (14°F~113°F)
Dimension 180( L) x 180(W) x 220(H) mm
Weight 2.8kg
