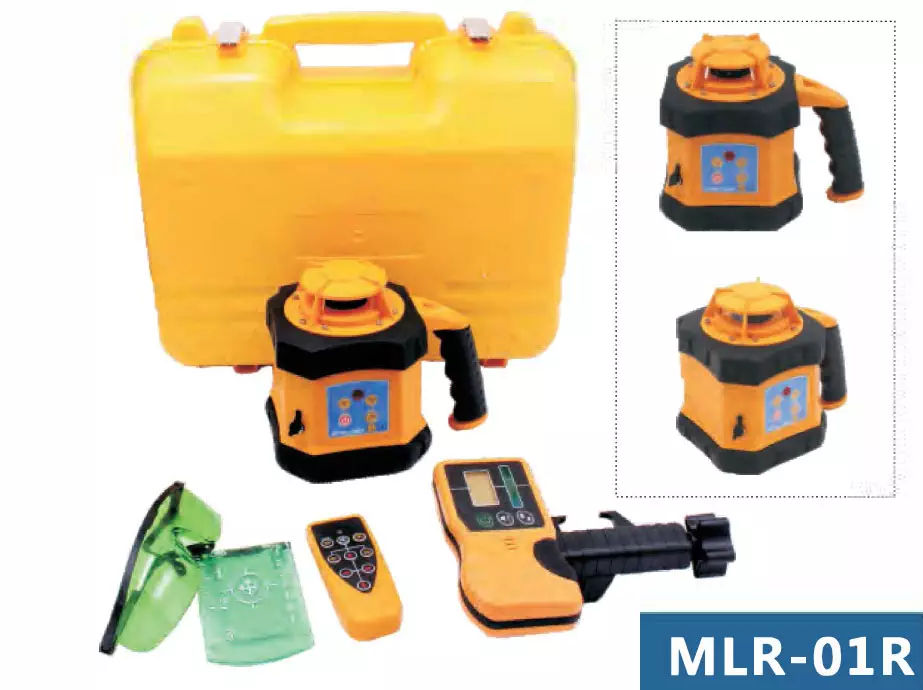

MLR-OlR/OlRH/OlG Rotary Laser


Model MLR-01R MLR-01RH MLR-01G
Light source Red beam Red beam -high power Green beam
Output power 10mw 20mw 30mw
Wave length Laser diode, 635nm Laser diode, 520nm
Anti-water class IP-64
Leveling accuracy Horizontal ±20″
Leveling range ±5°
Measuring range Dia. 500m(Using the laser detector)
Spinning speed 0, 60, 120, 300, 600 r.p.m
Directional-scanning Angle 0°, 10°, 45°, 90°, 180°
Slope-adjusting Range ± 5°(Bi-directional)
Remote controlling distance Approximately 20m
Power supply DC4.8-6V(4Section of NI-MH batteries or 4 section of Ni-MH rechargeable batteries )
Mounting thread 5/8″
Working temperature -10°C~+45°C
Dimension 120 ( L) x 120 (W) x 150 ( H) mm
Weight l.2kg
