Description

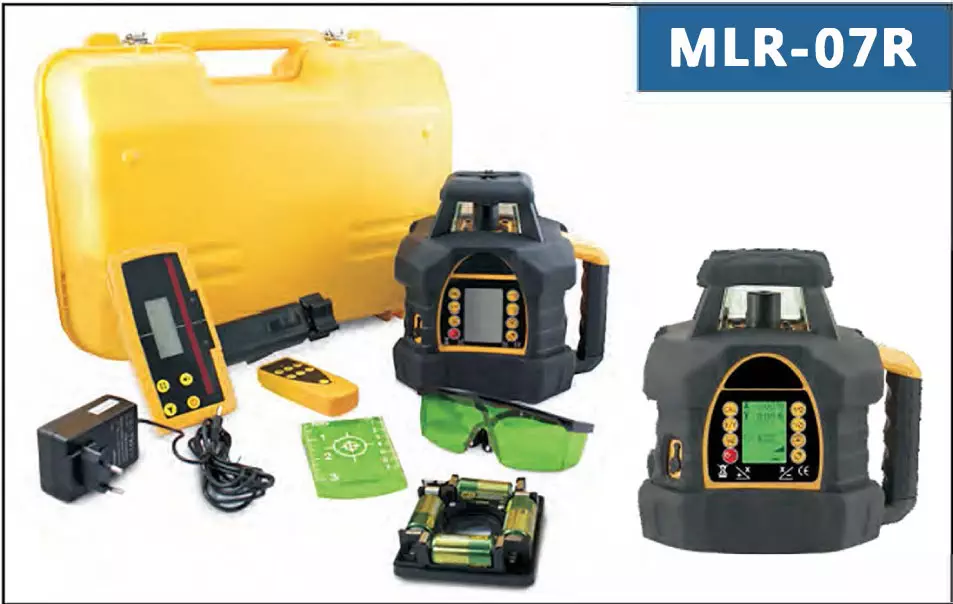

| Model | MLR-07R | MLR-07RH | MLR-07G |
|---|---|---|---|
| Light source | Red beam | Green beam | |
| Accuracy horizontal | ±20″(±3mm/30m) | ||
| Accuracy vertical | ±20″(±3mm/30m) | ||
| Slope range | ±10.0% (Digital) | ||
| Automatic self-leveling range | ±5° | ||
| Laser source | 635nmm laser Diode | 532nm laser Diode | |
| Classification | II (<1mw) | ||
| Operational range | 500m dia . (with detector) | ||
| Rotational head speed | 60,120,300,600,R.P.M | ||
| Approximate scan angles | 10°, 45 °, 90°, 180° | ||
| IR Remote control | Available remote distance:20m | ||
| Operation temperature | – 10°C ~ 50°C | 0°C ~ 50°C | |
| Power supply | DC4.8-6V(4Section of Nl-MH batteries or 4 section of Ni-MH rechargeable batteries ) | ||
| Continuous working time | 20hours | 7 hours | |
| Waterproof and dust proof | Ip64 | ||
| Dimension | 180 ( L) x 180 (W) x 220 ( H) mm | ||
| Weight | 2.8kg(w/batteries) | ||
