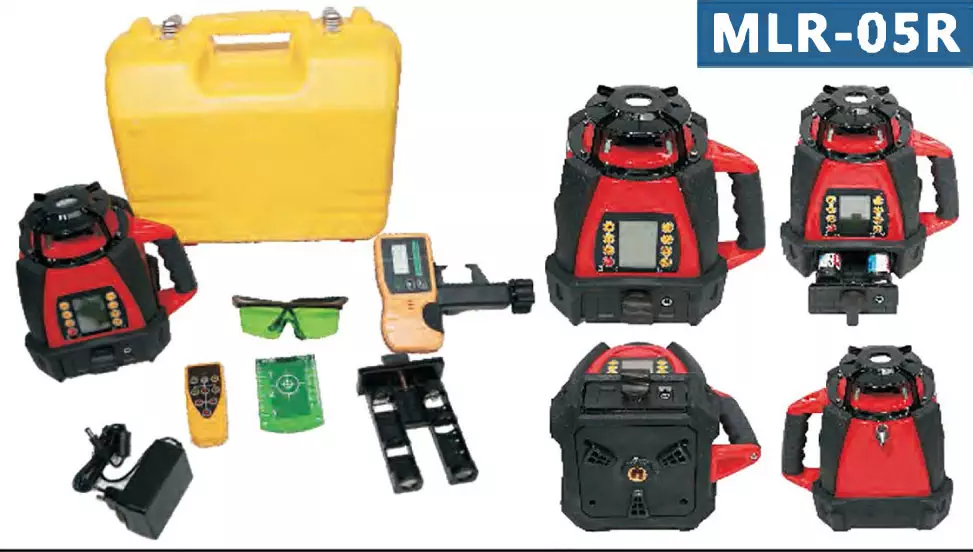

MLR-05R/05RH/05G Rotary Laser


Model MLR-05R MLR-05RH MLR-05G
Light source Red beam Green beam
Laser source 635nmm laser Diode 532nm laser Diode
Accuracy horizontal ±20″(±3mm/30m)
Accuracy vertical ±20″(±3mm/30m)
Accuracy Down point Diode ±1mm/1.5m
Automatic self-leveling range ±5″
Slope range ±10.0% (Digital)
Classification II (<1mw)
Operational range 500m dia. (with detector)
Rotational head speed 60, 120,300,600, R. P. M
Approximate scan angles 0°, 10°, 45°, 90°, 180°
IR Remote control Available remote distance:20m
Operation temperature – 10°C ~ 50°C 0°C ~ 50°C
Power supply DC4.8-6V(4Section of NI-MH batteries or 4 section of Ni-MH rechargeable batteries )
Continuous working time 20hours 10hours
Waterproof and dust proof Ip54
Dimensions 160 (L) x 160 (W) x 185 (H) mm
Weight 2.0kg(w/batteries)
