Description

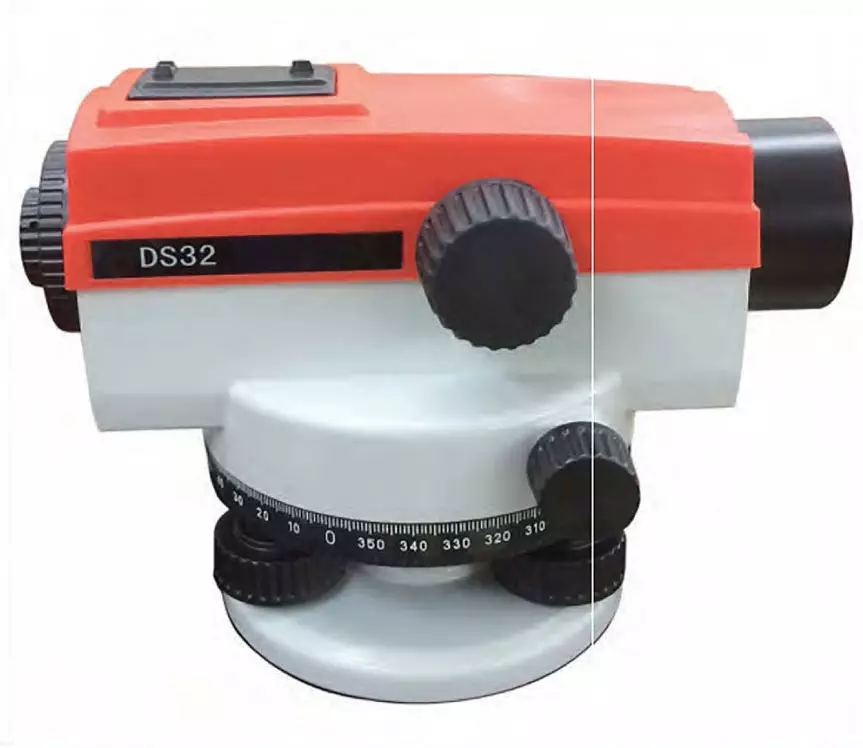

| Technical Parameters | DS24 | DS28 | DS32 |
|---|---|---|---|
| Standard Deviation for 1 km Double-run Leveling | 2.0rnm | 1.5mm | 1.0mm |
| Telescope Magnification | 24x | 28x | 32x |
| Telescope Image | Erect | ||
| Effective Aperture Size of Object Lens | 40mm | ||
| Field of View | 1°20 | ||
| Shortest Sighting Distance | O.5m | ||
| Stadia Multiplication | 100 | ||
| Addition Constants | 0 | ||
| Compensator Type | X wire-hung and air-damping | ||
| Compensator Working range | ±15′ | ||
| leveling Accuracy | ±0.5″ | ±0.4″ | ±0.3″ |
| Accuracy of Circular level | ±8’/2mm | ||
| Horizontal Circle | 360°or 400Gon optional | ||
| Instrument Size | 1 88mm x 132mm x 140mm | ||
| Net. Weight | 1.4kg | ||
| Standard Accessories | Adjusting Pin, Hex key, Desiccating Agent:. Plastic Carry Case,
Plumb Bob, User Manual |
||
| Packing Details | 4sets per Carton: 1 Okgs per Carton
Carton Dimensions: 42cm x 31cm x 42cm |
||
